Jabfloor
| Jabfloor is a floor insulation board that achieves the required U-value and compressive performance on a range of different floor applications:

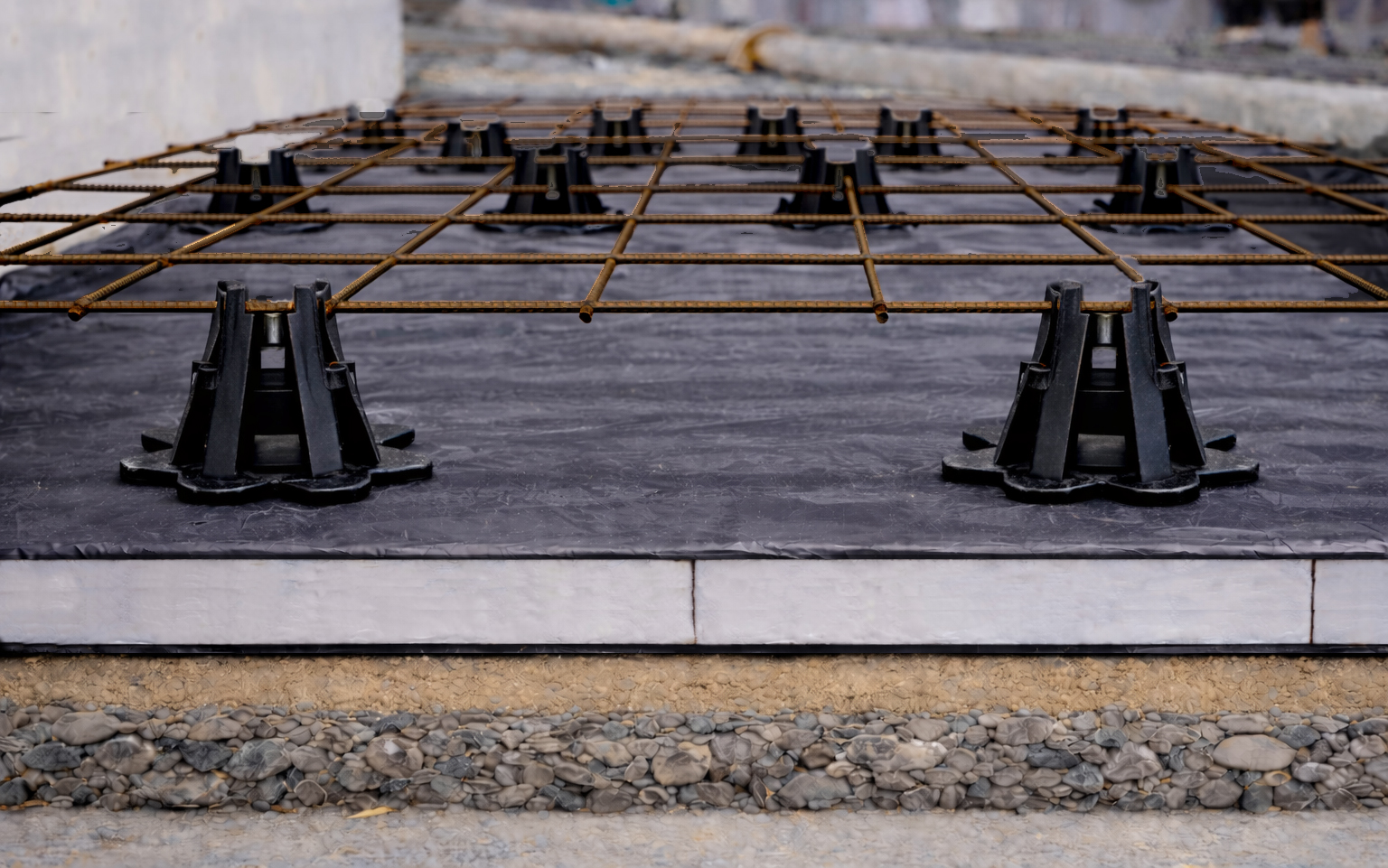

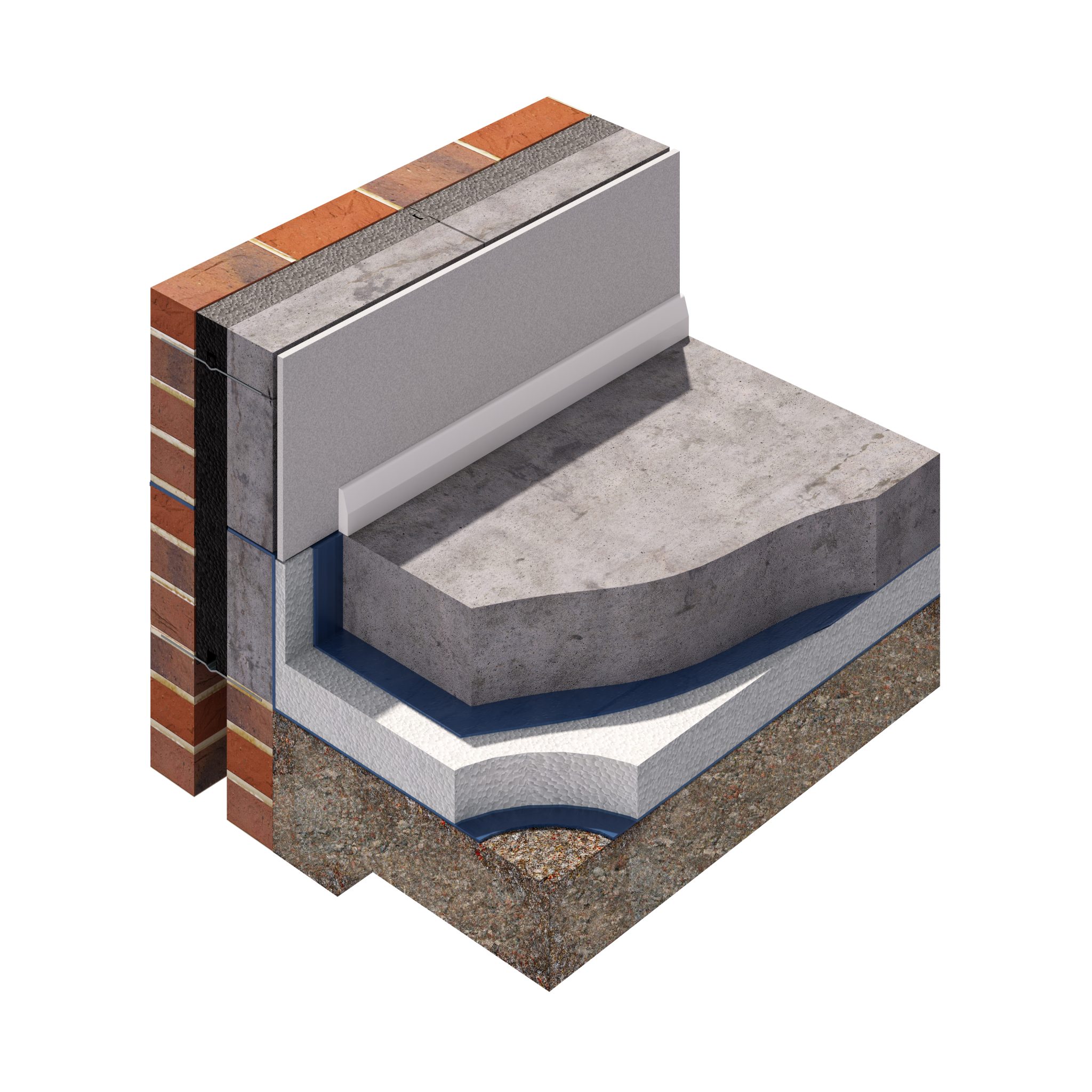

• Below ground supported slab • Above slab below chipboard • Above slab below screed • Precast suspended concrete • Cold Store
|
Key Benefits
|
The Jabfloor insulation range is available in Grade 70, 100, 150, 200 and 250 grades as defined by BS EN13163.
As a quick reference, the following guidance about use and design loads applies:
Jabfloor 70 is used for standard domestic loads
Jabfloor 100 is used in offices and schools.
Jabfloor 150 – 250 is used in heavy commercial, industrial settings

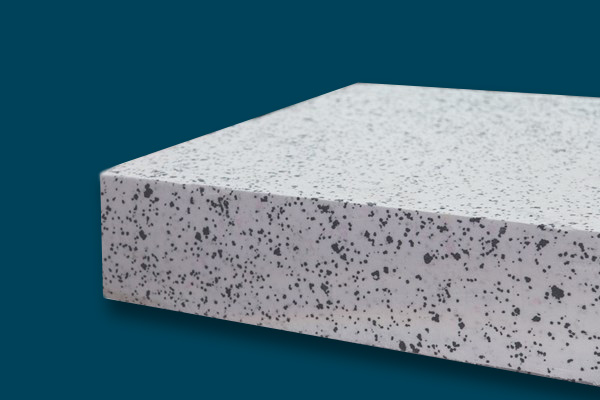

Jabfloor Insulation is supplied in a standard board size of 1200mm x 2400mm
Compression Performance
| Jabfloor Grade | 70 | 100 | 150 | 200 | 250 |
| Nominal Density (Kg/m3) | 15 | 20 | 25 | 31 | 34 |
| Compressive Strength 1% (kN/m2) | 20 | 45 | 70 | 90 | 100 |
| Compressive Strength 10% (kN/m2) | 70 | 100 | 150 | 200 | 250 |
| Shear Strength (kN/m2) | 55 | 75 | 100 | 200 | 250 |
| Shear Modulus (kN/m2) | 2100 | 2800 | 3400 | 4100 | 4800 |
FAQ
Which thicknesses are available to order in Jabfloor?
There are standard thicknesses which are 25, 30, 40, 50, 60, 75, 100, 120, 150 and 200mm. However, other thicknesses are available to order.
Can Jabfloor be used in all floor applications?
Yes, Jabfloor and Jabfloor HP are the most versatile insulants for use in all floor specifications and are available in:
• A wide range of compressive strengths from 70kPa grade to 500kPa.
• A wide range of thicknesses
What is the maximum weight of wet concrete that Jabfloor can withstand?
Jabfloor 70 has a nominal 1% compression value of 21kPa equating to 2.1 tonnes per m², which means that Jabfloor 70 will accept up to 600mm of wet concrete. Higher grades of Jabfloor will accept heavier weights and greater depths of concrete.
What is the maximum point load Jabfloor can accommodate?
Jabfloor 70 has a nominal 1% compression value of 21kPa (2.1 tonnes per m²), which is suitable under a 75mm screed in normal domestic situations. The advice of a structural engineer should be sought for any exceptional point loads in the design of the floor.
Is an expansion gap around the edge of the floor finish required when used above Jabfloor?
No. Jabfloor should be tightly butted against the perimeter walls and insulation strip should be used on all exposed edges. An expansion gap may be necessary around the edge of the floor finish in screed or particleboard overlay.
